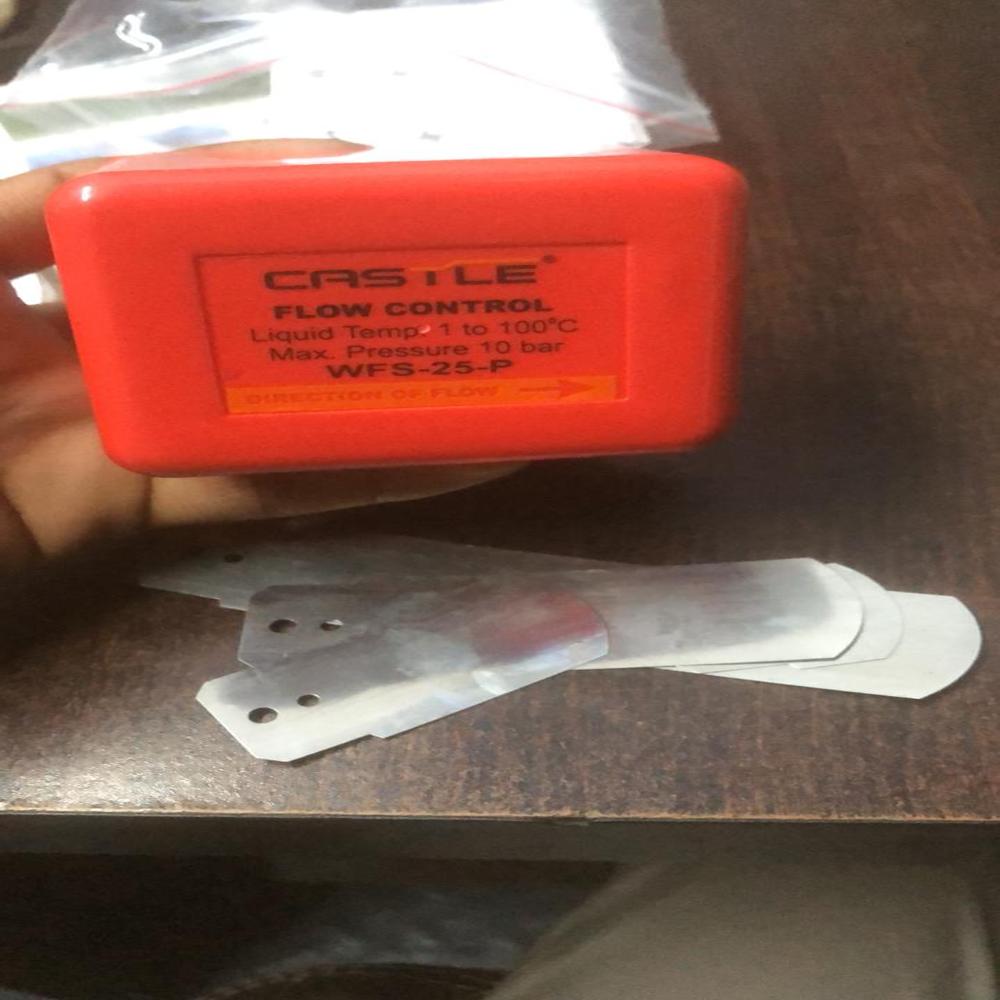

CASTLE WATER FLOW SWITCH WFS 25-P

Name: CASTLE WATER FLOW SWITCH WFS 25-P
Brand: King Refrigeration & Company
Price: 1200.0 INR
Availability: InStock

Price 1200.0 INR/ Unit

Get a Price/Quote

MOQ : 10 Units

CASTLE WATER FLOW SWITCH WFS 25-P Specification

Temperature Range
0C to 60C

Max. Current
5A

Automation Grade
Automatic

Mechanical Life
Over 1,000,000 cycles

Rated Voltage
250V AC

Circuit Type
SPDT

Protection Level
IP65

Number of Module
1

Finish Type
Matte

Response Time
<1 sec

Product Type
25-P Industrial Water Flow Switch

Material
ABS

Insulation Resistance
>100M (at 500V DC)

Contact Resistance
<100m

Max. Voltage
10 Ampere (A)

Operating Temperature
As per industry norms Celsius (oC)

Size
1 inch BSP (25 mm)

Color
Red

Weight
Approx. 250 g

Mounting Type
Inline, Threaded

Current Rating
0.5A to 5A (AC)

No Of Poles
Single Pole

Cable Entry
PG9 Gland

Connection Type
Male Thread

Media
Water, Non-corrosive Liquids

Minimum Flow To Activate
1 L/min

Flow Range
1 to 30 L/min

Max. Pressure
10 bar

Switch Type
Magnetic Reed Switch

Contacts Material
Silver Alloy

CASTLE WATER FLOW SWITCH WFS 25-P Trade Information

Minimum Order Quantity
10 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About CASTLE WATER FLOW SWITCH WFS 25-P

Product details

Flow Switch Type	Paddle Flow Switch
Switch Type	NO
Usage/Application	Industrial
Flow Media Type	Gas
I Deal In	New Only
Country of Origin	Made in India
Contact System Type	DPST

Efficient Magnetic Reed Switching

The WFS 25-P utilizes a magnetic reed switch mechanism, offering a fast response time of under one second and a mechanical life exceeding one million cycles. It ensures high performance even in demanding water flow automation applications.

Versatile Installation and Usage

Designed for easy inline or threaded mounting, installation of the water flow switch is straightforward. Its compatibility with a wide temperature range and standard 1-inch BSP threaded connection guarantee flexibility for diverse system requirements.

Durability and Safety Assured

Built with an ABS body and sealed to IP65, the switch provides excellent resistance to environmental factors. Industrial-grade specifications including high insulation resistance and silver alloy contacts further enhance reliability and safety in operation.

FAQ's of CASTLE WATER FLOW SWITCH WFS 25-P:

Q: How do I install the CASTLE WATER FLOW SWITCH WFS 25-P in my water pipeline?

A: The flow switch is designed for inline or threaded mounting using its 1-inch BSP male thread. Ensure the switch is oriented correctly with respect to flow direction and securely tighten the connection to avoid leaks. Electrical connections should be made through the PG9 cable gland as per the wiring diagram provided.

Q: What is the minimum flow required to activate the WFS 25-P switch?

A: The CASTLE WATER FLOW SWITCH WFS 25-P requires a minimum flow of 1 litre per minute (L/min) to operate. Any flow below this level may not trigger the switching mechanism.

Q: When should I use a flow switch with silver alloy contacts and magnetic reed technology?

A: Silver alloy contacts and magnetic reed technology are ideal for applications demanding high reliability and low contact resistance. Use this switch in automated water systems, industrial controls, or non-corrosive process monitoring where long mechanical life and rapid response are essential.

Q: Where can the WFS 25-P be installed, and what protection does it offer?

A: This flow switch can be installed in any system transporting water or non-corrosive liquids, indoors or in sheltered outdoor environments. With its IP65 ingress protection, it safely operates in locations subject to dust and moisture, as long as it is not submerged.

Q: What is the process for wiring the CASTLE WFS 25-P flow switch?

A: Wiring the switch requires connecting its SPDT (Single Pole Double Throw) terminals via the PG9 cable gland. Adhere to the rated voltage and current limits (up to 250V AC, 5A) and ensure that proper insulation is maintained throughout the installation process.

Q: How can using the WFS 25-P enhance automation in my facility?

A: By instantly detecting and controlling flow in your water system, the WFS 25-P enables automation such as pump activation, flow alarms, and system interlocks. Its automatic operation, fast response, and long service life contribute to increased process efficiency and equipment safeguarding.
